nbk-01-fuellstand.png: Bypass Level Indicator Low Cost NBK-01

Bypass Level Indicator Low Cost NBK-01

Measuring length: max. 6 m
Connection:
G ½, G ¾, G 1, G 1¼,
½, ¾, 1, 1¼" NPT
Material: stainless steel 1.4301
pmax: PN16
tmax: 120°C
Accuracy transducer: ±1 mm
Option: transmitter 4 - 20 mA, contacts

Datasheet

application/pdf; charset=binary

nbk-01-gb-level

174 KB

Operating Instructions

application/pdf; charset=binary

NBK-01 - Operating Instructions

217 KB
application/pdf; charset=binary

NBK-R - Operating Instructions

294 KB
application/pdf; charset=binary

NMT/NBK-T - Operating Instructions

189 KB

Miscellaneous

application/pdf; charset=binary

General Safety Instructions

190 KB

Description

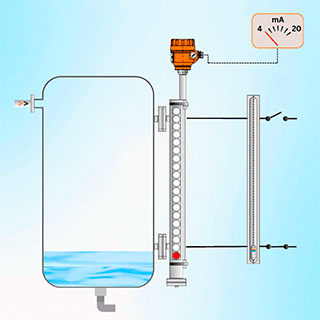

Kobold bypass level indicators are used for continuous measurement, display and monitoring of liquid levels. The bypass tube is attached onto the side wall of the vessel. According to the law  of communicating tubes the level in the bypass tube equals the level in the vessel. A fl oat with embedded magnets in the bypass tube follows the liquid level and transfers it in a non-contacting manner to a display fitted outside the tube or to a monitoring device.
